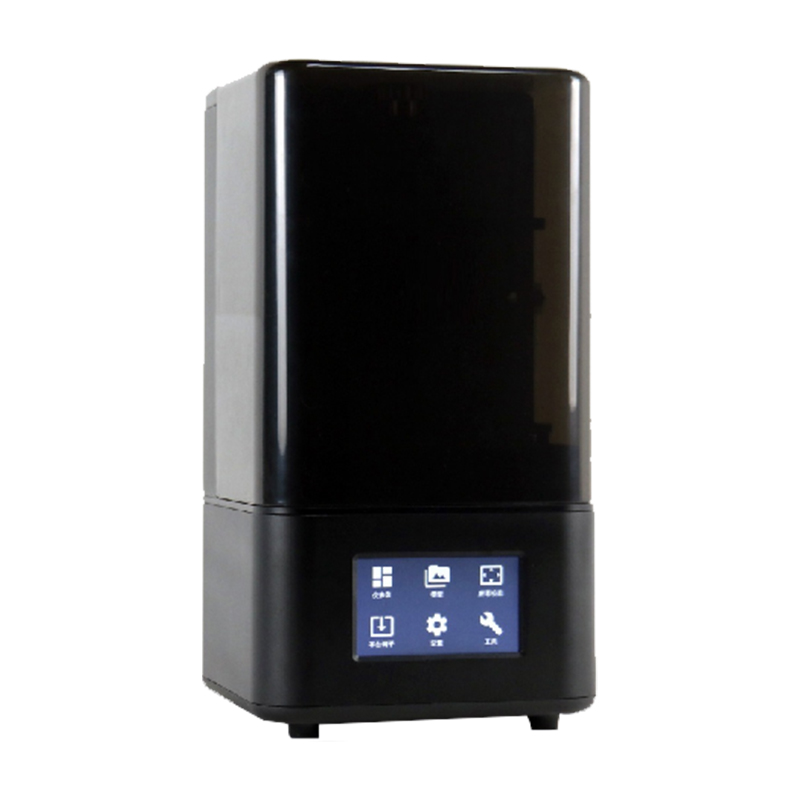

LCD-1A


17665001441

Detail

System	SIMBA3D&CHUTU V3.0	Control panel	3.5 inch touch screen
Slicing software	CHTUB OX and any open source software	Printing materials	Photosensitive resin
Connection	USB, wired internet, WIFI	Device dimensions	200×200×375（mm）
Technical support	Digital light-curing technology	Package size	295×295×475（mm）
Light source configuration	Self-developed diffractive parallel light source system (optional)	Print size	128×81×150（mm）
XY resolution	2560×1260	Print accuracy	0.025/0.05/0.075/0.1
Z-axis accuracy	0.01mm	Print speed	20-80mm/h
Power	35W	Thermostatic system	Support (customizable)
Automatic feeding	Support (customizable)	Air purification	Support (customizable)
